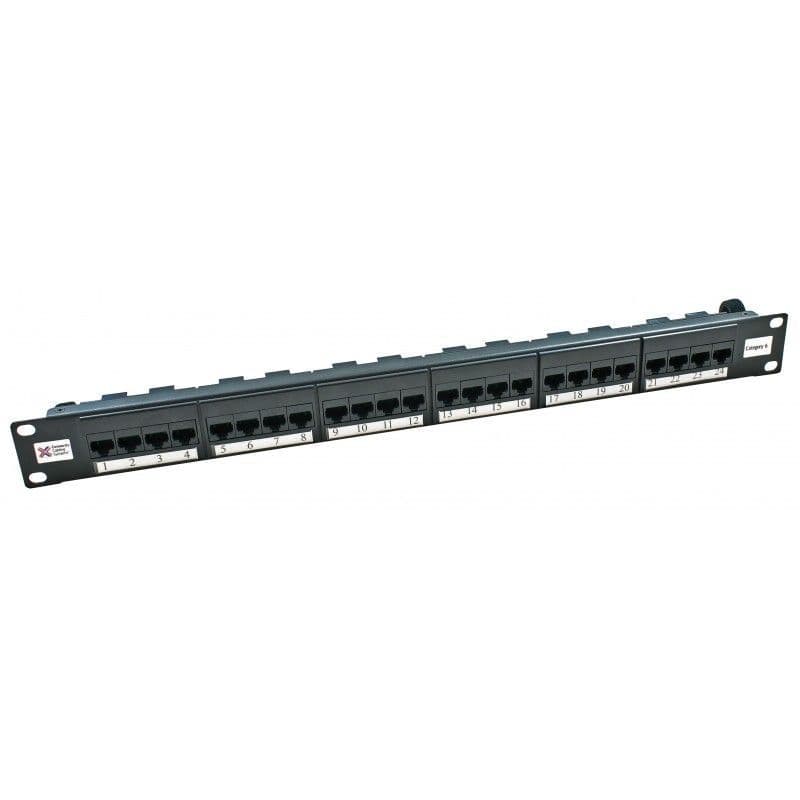

Connectix 009-001-009-07 Patch Panel 24 Way CAT6 Without Cable Management
Connectix is a British based manufacturer of copper cabling systems, fibre optic connectivity and racks and enclosures for IT systems used in LANs, Data Centers, fibre metropolitan networks, harsh environment applications, broadcasting, residential, smart home and FTTx/telecom applications.
Connectix team of mechanical and electrical design engineers use CAD and advanced prototyping to turn concepts into reality; staying at the forefront of technology and developing industry leading connectivity solutions.
Their 40,000 sq ft racks and enclosure factory features punch and fold production Amada machinery, automated sheet loaders and press brakes; while our spray paint and powder coating facility is state of the art.
Category 6 high density patch panels provide the performance needed for present and next generation data communications networks and applications, including Gigabit Ethernet. The high density format is ideal where cabinet space is at a premium.
Available in a 1u 24 port format, these Category 6 high density panels achieve optimum transmission performance by incorporating the highest quality components and innovative on-board compensation techniques. The front of the panel features write-on designation labels for each port as well as individual outlet numbering.
The rear of the panel has an easy to follow colour code for each numbered cable position and two cable tie positions are provided for each 6 way block. An optional rear cable management bar is available if required. All Connectix Category 6 high density panels are fully compliant with the TIA/EIA Category 6 standard. When used in conjunction with Category 6 modules and UTP cable the user will get a link performance exceeding Category 6 requirements
Key Features
- Category 6 performance
- Adaptable port designation
- Simple colour coded termination
- Numbered cable position
- Top quality high performance sockets
- Individually QA tested
Specifications
- Width - 19” (483mm)
- Depth - 34mm
- Height - 1u (44mm)
- Fixing Centres - 467mm
- Material - Mild Steel Sheet CR4 to BSEN10130-1999 DC01 Plastic Inserts ABS Thermoplastic resin with grade UL94 V0 at 1.5mm flame retardancy
- Finish - Black powder coat to BS6496
- Socket Labels - 9 x 89mm (6 way blocks)
- IDC Colour Code - IDC colour code to T568B
- Cable Guide - Two cable tie positions per 6 way block. Optional Cable Management Bar available
- Sockets - High performance unshielded vertical jacks
- IDC Blocks - Industry standard IDC blocks
- PCB - Groups of 6 identical circuits on 1.6mm double sided PTH board
- Conforms to - TIA-568-C.2 Category 6 specification
