Model: FX20VE

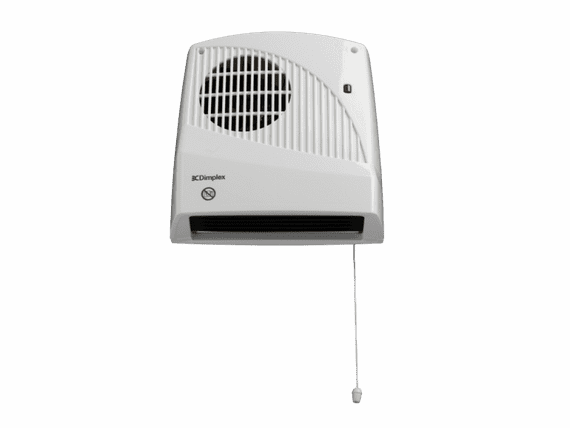

The Dimplex FX20VE Downflow Fan Heater has a 2kW Maximum output and has an automatic electric timer.

FX20V Features:

• 2kW maximum output.
• 1kW output selectable on installation.
• Pull cord operation.
• Neon indicator.
• Energy saving thermostat switches output down to 1kW once the room is warm (functions on 2kW setting only).

FX20VE Features:

• Energy saving electronic timer automatically switches heater off after a preset time period to prevent it being left on accidentally.
• Time period adjustable between 5 and 155 minutes on installation.
• Heater can be manually switched off before time period expires.
• 2kW maximum output.
• 1kW output selectable on installation.
• Pull cord operation.
• Neon indicator.

Technical Specification:

Safety Protection

Manually resettable thermal overload cut out and thermal fuselink provide double protection against overheating for any reason.

Construction

Double insulated plastic case. Moulded in flame retardant self extinguishing grade nylon.

Colour

White.

Installation

Two upper keyhole slots are provided together with a third fixing hole to secure the heater to the wall. The heaters are supplied without cable.

IP Rating

All Models: IPX2.

Products should be mounted at a minimum height of 600mm if installed in zone 3 of a location containing a bath or shower.

(BS7671 : 2001 section 601)

Electrical

All installations must be in accordance with current IEE wiring regulations.
