Kewtech EZYPAT PLUS Battery Operated 230V/110V Run Leakage Pat Tester
Kewtech EZYPAT PLUS Battery Operated 230V/110V Run Leakage Pat Tester
Kewtech EZYPAT PLUS Battery Operated 230V/110V Run Leakage Pat Tester
Kewtech EZYPAT PLUS Battery Operated 230V/110V Run Leakage Pat Tester
Kewtech EZYPAT PLUS Battery Operated 230V/110V Run Leakage Pat Tester

Product Description

Kewtech EZYPAT PLUS Battery Operated 230V/110V Run Leakage

Kewtech’s most recent PAT Tester ‘EZYPAT Plus’ can perform a range of useful PAT testing functions, including load and run testing at 230V and 110V. It is currently the only battery-powered tester that offers load and run testing constitutes an important method of testing handheld appliances and the tester is equally at home testing 230V domestic appliances as 110V power tools.

The continuity test function on the EZYPAT Plus uses a 200mA test current (safe for IT) and can be extended up to a five second test. The insulation resistance test has options of 500V or 250V test voltage, which allows testing on surge-protected extension leads. The tester is also capable of substitute leakage measurement and polarity checking on extension leads. The null function also cancels out the resistance of test leads for increased accuracy.

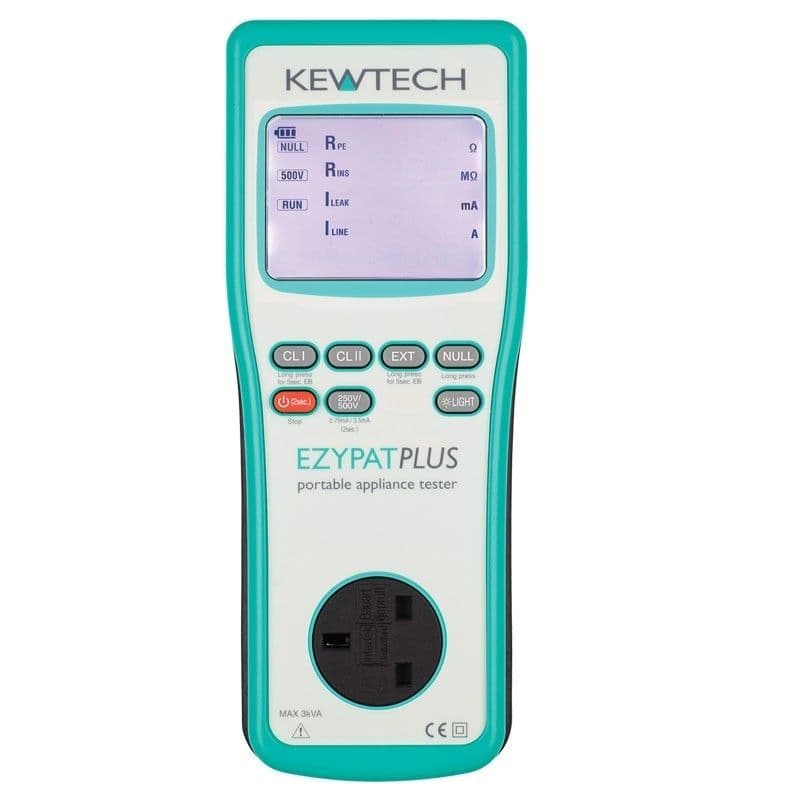

All testing results will be on display through a back-lit LCD Screen alongside the PASS or FAIL indication. The screen glows green to indicate a PASS and red to indicate a FAIL, so the overall result is immediately apparent. On the EZYPAT plus there are clear labelled buttons that initiate automatic test sequences on Class I appliances, Class II appliances and extension leads.

When you need to power on the appliance to test fully, then the EZYPAT PLUS is a great non-downloading option. This PAT tester has all the features of the EZYPAT and in addition, it will conduct a run leakage test at 110V and 230V.

Key Benefits
  • Easy to use
  • Automatic test sequences
  • IT safe with 200mA earth test 250V insulation option
  • Battery operated - for convenience
  • Long battery life - approx. 1400 tests

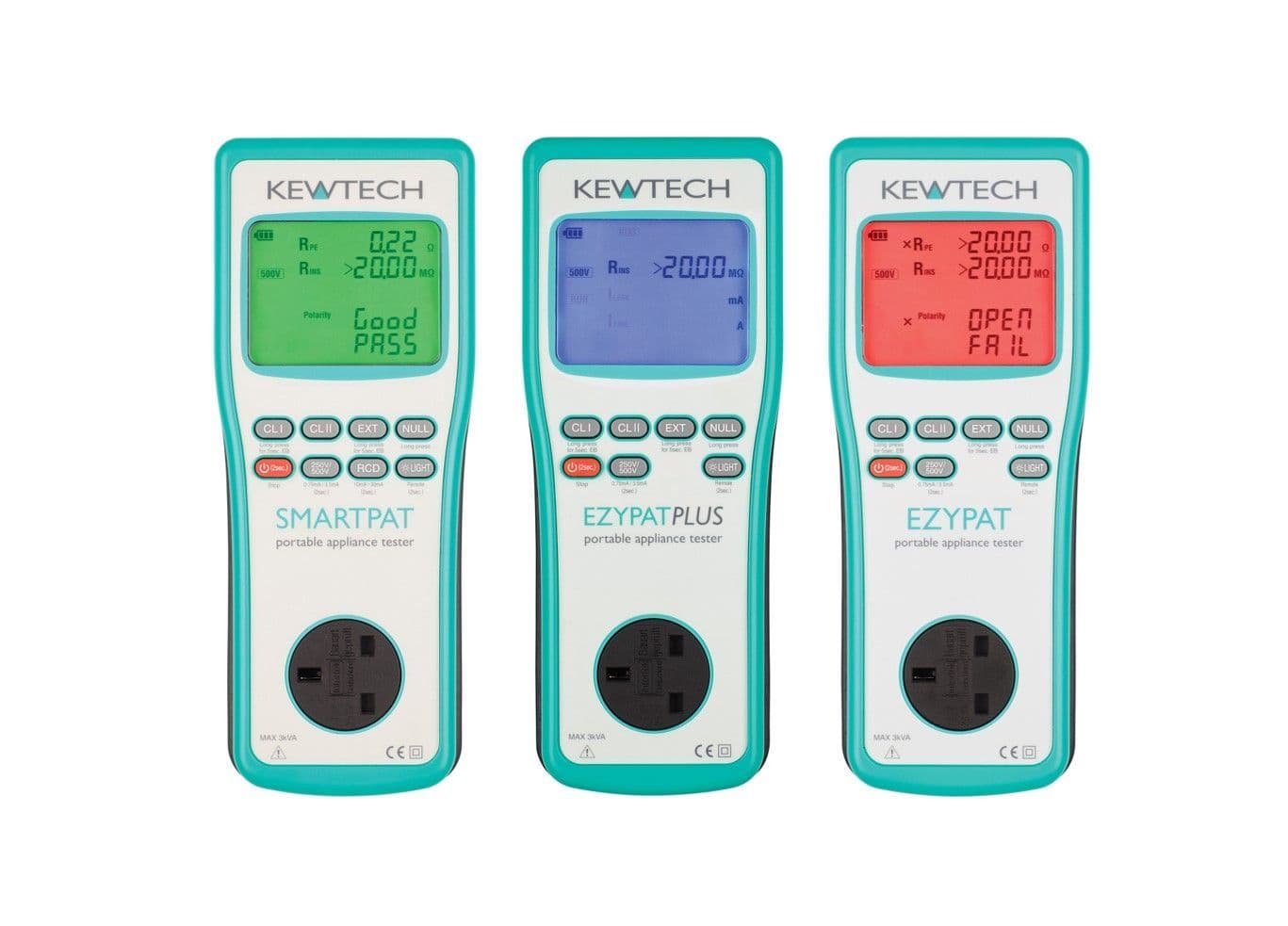

  • PASS / FAIL – Green / Red screens
  • Run / Leakage at supply voltage (230V or 110V)
  • Large easy-to-read display
  • Light and ergonomic shape
Key Features
  • Performs Earth bond at 200mA (IT safe)
  • Battery operated
  • Long battery life - approx. 1400 tests
  • Automatic test sequences
  • PASS / FAIL – Green / Red screens
  • Appliance status pre-check
  • Quick check continuity
  • 5 second continuity
  • 250 V and 500 V insulation
  • Substitute leakage test
  • Selectable substitute leakage limits
  • Extension lead test
  • Test lead nulling
  • Back light
  • Extension lead adapter
  • Earth Continuity test lead with probe and crocodile clip
  • Carry bag with handle
  • Quick start guide

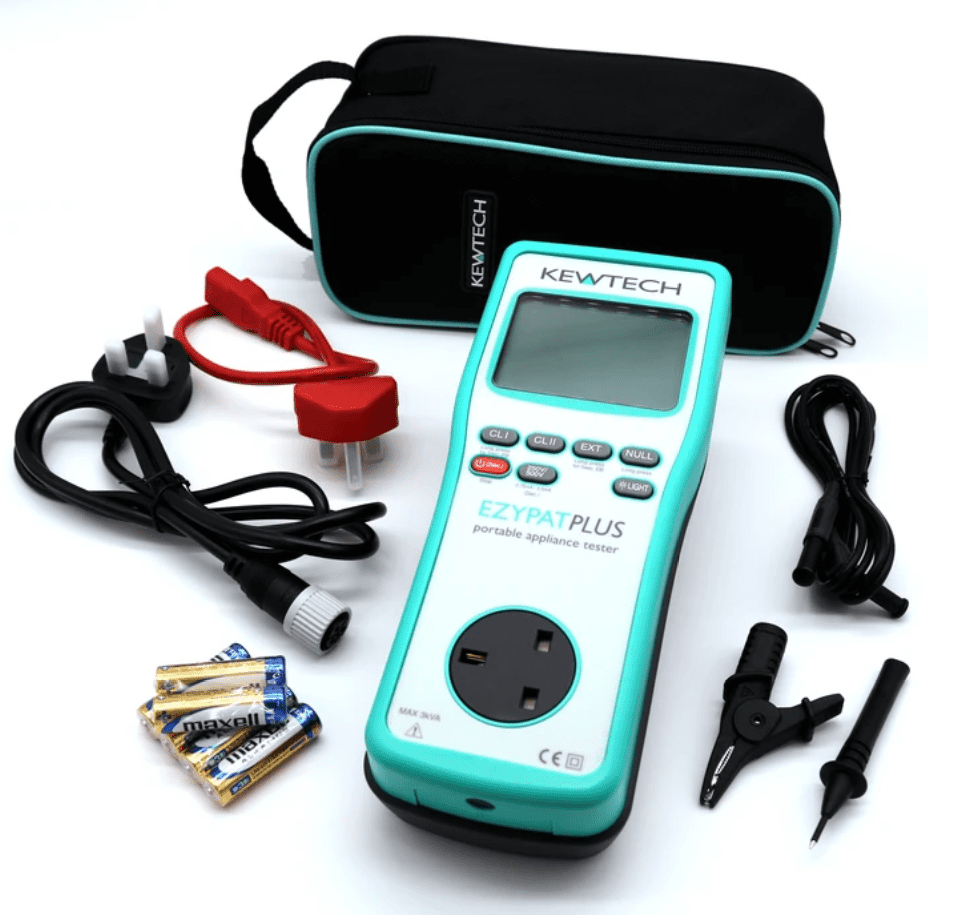

What's Included
  • Extension lead adapter (EZYLEAD)
  • Earth continuity test lead with probe and crocodile clip (EZYEARTH)
  • Mains Lead (EZYMAIN)
  • Carry bag with strap
Weights & Dimensions
  • Boxed Weight: 1.82kg
  • Boxed Dimensions: 290(L)x140(W)x130(D)mm
  • 6 x AA Batteries

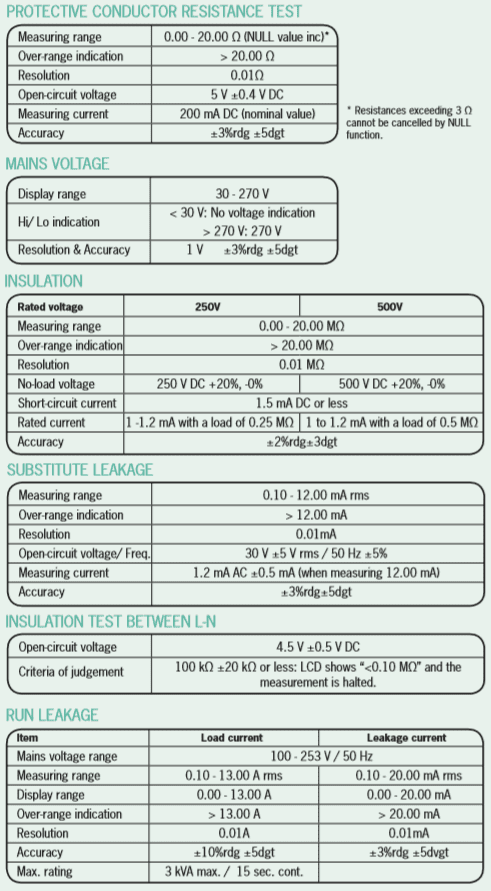

Specifications

EAN
5060084081956
GTIN
5060084081956
MPN
EZYPAT PLUS
Boxed Weight
1.82kg
Boxed Dimensions
290x140x130mm
Powered
Battery operated - 6x AA
Battery Life
1400 Tests Approximately
Pass
Green
Fail
Red
Run/Leakage
230V or 110V
Type
PAT Tester
Brand
Kewtech
Condition
New
Product Code
EZYPAT PLUS
Weight
1.82kg
