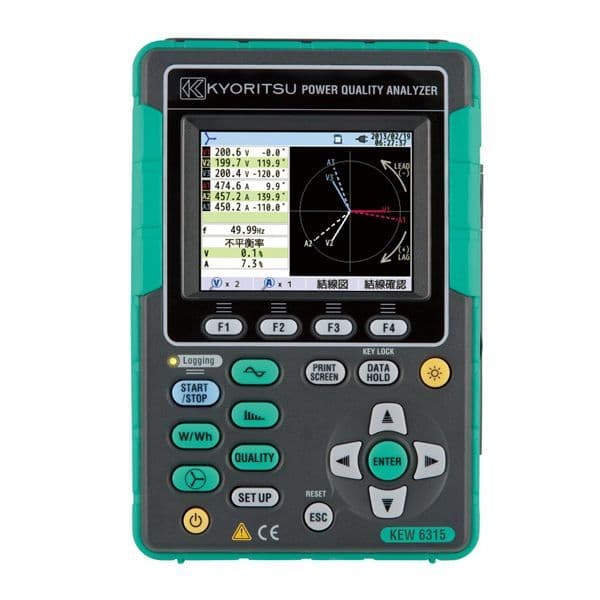

Kewtech KEW6315 Compact Power Meter With 3 x 8130 Flexi Clamps 1000A 3 Channel

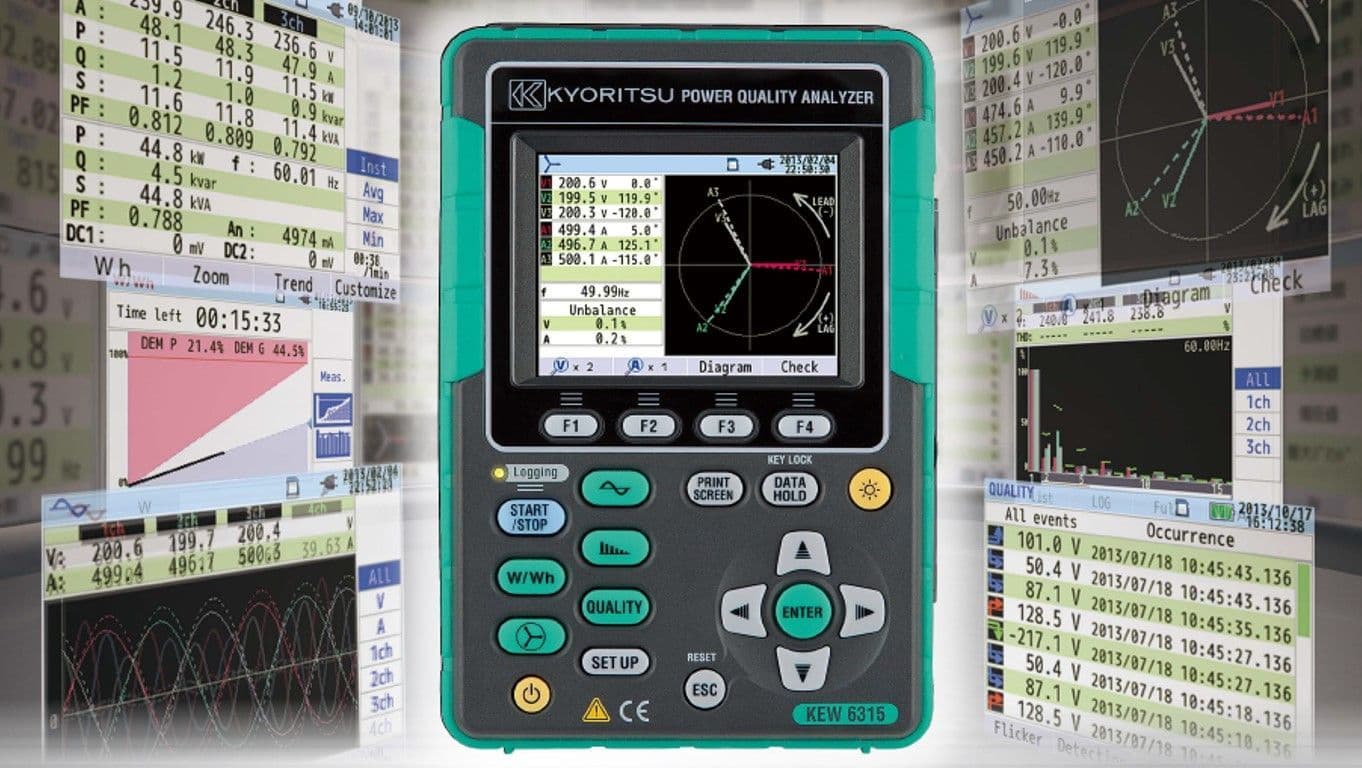

The Kewtech KEW6315 Power Quality Analyser is a competent power data-logger capable of capturing simultaneous power and power quality data in order to diagnose poor power quality and highlight areas where energy can be saved.

Featuring a large, high resolution colour TFT display, on-screen quick start guidance, wiring check diagrams and sensor detection can be viewed when using the KEW 6315; convenient for novice and advanced users alike. The power analyser can be wirelessly connected to an Android device using Bluetooth, where real-time recordings can be displayed remotely. Moreover, power data is logged on a removable 2GB SD memory card which can be downloaded at a later date for reporting using the supplied software.

Key Benefits
  • Data logging, harmonics, waveform and events (transients, dips, swells and interupts) measured all in one go.
  • Massive memory enables you to conduct extended surveys without worry of running out of storage
  • Quick report facility allows you to download and produce a report in 2 minutes and put a cost to energy used
  • EN 50160 automatic report - again within moments a 17 page report compares the measured data with the supply standard highlighting any errors
  • Intuitive user interface means that you will soon be up and running and remember the setting up procedure
  • Kit comprises everything you need to get you going
  • Remote monitoring on PC and Android devices via Bluetooth
Key Features
  • High accuracy measurements +/- 0.2% Volts/Current, 0.3% Energy
  • Quick set up guide - on screen guides and wiring check
  • Quick report enables fast download to report, extracting the salient data immediately. You can enter daytime and night time tariffs to get the cost of the electricity used. You can even look at a subset of the data i.e. just Monday working hours.
  • Extremely compact design
  • Simultaneous measurements of means that you do not have to do several surveys on the same site
  • Instantaneous Values
  • Measures Flicker
  • Energy consumed
  • Demand monitor / prediction
  • Wave form and vector diagrams
  • Harmonic measurements and analyser
  • Displays and calculates power factor and corrective capacitors
  • Includes three 1000A flexi-clamps accurate down to 1A
  • Print screen function saves any screen, including connection diagram – for fast report writing
  • Fourth current channel for measured neutral current (neutral current also calculated) or earth leakage
  • Test leads colour coded to current British Standard.
  • Comprehensive user friendly intuitive software
  • Internal memory plus flash card memory – up to 1GB!
  • Digital output for use to control max demand
  • Two additional inputs for external sensors. For instance to monitor lighting / temperature levels
  • Complies fully to IEC61010-1 Cat IV 300V

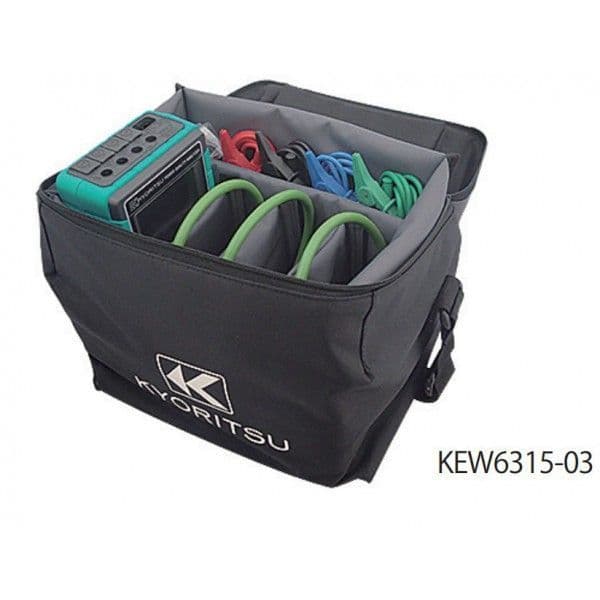

What's Included to get you started

  • Kewtech KEW6315 Compact Power Meter
  • Three (KEW8130) 1000A flexi-clamps
  • Four voltage test leads
  • PQA software
  • SD card
Optional Extras - Contact us for More Information
  • ACC9132 Magnetic carrying case for mounting inside metal distribution boards
  • ACC8312 Power supply adaptor for taking single phase supply from the test leads to power the instrument
  • KEW8147 Load / leakage clamp 70A
Specifications
  • EAN:
    4560187065606
  • EAN:
    4560187065606
  • MPN:
    KEW6315
  • Wiring Connections:
    1P2W, 1P3W, 3P3W, 3P4W
  • Range.:
    600.0/1000V
  • Accuracy:
    ±0.2% rdg ±0.2% f.s. (sine wave, 40-70Hz)
  • Allowable Input:
    1~110% of each range (rms). 200% of each range (peak)
  • Display Range:
    0.15 - 130% of each range
  • Crest Factor:
    3 or less
  • Sampling Speed of Voltage Transient:
    2.4μs
  • Frequency Meter Range:
    40 to 70Hz
  • Power Supply (AC Line):
    AC100 - 240V/50-60Hz/7VA max
  • Power Supply (DC Battery):
    Alkaline size AA battery LR6 or Ni-MH (HR15-51) x 6 Battery life approx 3h (LR6, backlight off)
  • Internal Memory:
    Flash memory (4MB)
  • PC Card Interface:
    SD Card (2GB)
  • PC Communication Interface:
    USV Ver 2.0, Bluetooth Ver 2.1 + EDR Class 2
  • Display:
    320 x 240 (RGB) pixel, 3.5" colour TFT display
  • Dimensions/Weight:
    175×120×68mm
  • Brand:
    Kewtech
  • Condition:
    New
  • Product Code:
    KEW6315
  • Weight:
    0.9kg
