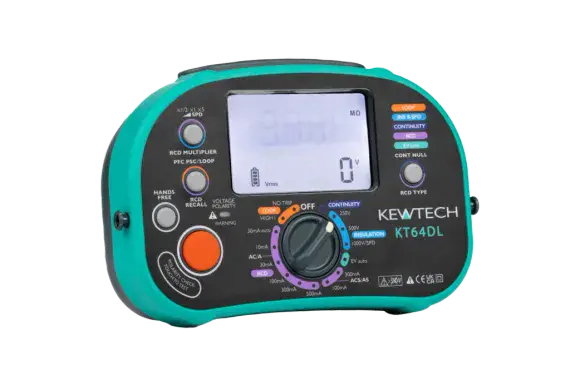

Kewtech KT64DL 6-in-1 Compact Multifunction Tester

The KT64DL Multifunction Tester is the UK’s smallest MFT yet it’s packed with some big features including 6mA DC test for EV testing and an SPD test.

The KT64DL has a robust loop testing circuit, continuously guards against live circuits when dead testing and has an auto RCD test as standard. What’s more…this tester couldn’t be easier to use!

Both the KT63DL and KT64DL are compact, lightweight and the only MFT’s on the market to feature a magnetic base, allowing you to attach to metal cabinets and distribution boards for hands free testing.

Key Benefits

• Easy to use and straight forward interface with single rotary dial and large screen display
• Magnetic base for hands free attachment to metal cabinets
• EV charge point testing
• New design ultra slim probe tips for access to push fit connector blocks
• Constant live voltage detection protects when dead testing
• No Bangs – continuous live monitoring means no blown fuses or PCBs
• Electronic 'hands free' lock down test button
• IP54 even when the leads are not plugged in
• End of line calibration certificate

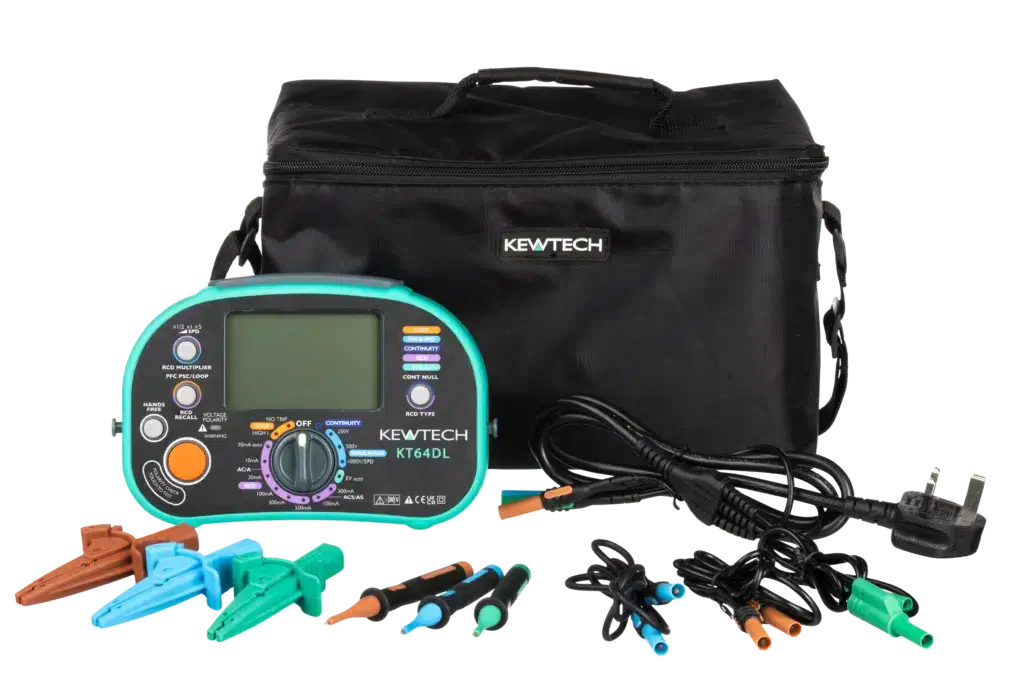

• Comes complete with soft carry case, mains lead, distribution board leads and padded neck strap

Key Features

• Continuity - switchable buzzer and auto null
• Insulation - 250, 500 & 1000V with voltage warning LED and auto discharge
• Loop - ATT (low current), high current 0.001 ohm resolution
• Anti Trip Technology loop for full no trip Loop testing of RCDs with low susceptibility of RCD uplift and noise interference
• PSC/PFC - clear indication of what is being tested and displayed with loop reading
• RCD - Type AC, A, ACS, AS, auto & ramp
• Type AC RCDs - Tests 10mA, 30mA, 100mA, 300mA & 500mA
• Type A RCDs - Tests 10mA, 30mA, 100mA & 300mA
• 6mA DC test at 0 & 180 for EV charge point testing
• 30mA x 1 RCD test at 0 & 180
• RCD auto test mode for 30 mA RCDs
• RCD ramp test function
• SPD testing
• Gold plated probe tips for more consistent readings
• Test leads auto-null for continuity mode
• Polarity check
• Instant correct wiring status check
