Kewtech SMARTPAT Battery Operated 230V/110V Run Leakage And Controllable Remotely

The Kewtech SMARTPAT PAT Tester is a battery-powered PAT tester that is nevertheless capable of performing load and run testing for 110V and 230V appliances. An RCD test function is also available. These advanced test functions sit alongside a 200mA continuity test, insulation resistance test, substitute leakage test and polarity check for extension leads.

Load and run testing constitutes an important testing function as it enables the testing of earth leakage current and total current drawn in handheld appliances that can pose a greater risk. The Kewtech SMARTPAT’s no-trip RCD testing function, meanwhile, helps test tripping in 10mA and 30mA devices. Further versatility is added by a 5s duration continuity test and a lower 250V insulation resistance test voltage for assessing surge-protected extension leads. A test lead nulling function aids accuracy by adjusting for resistance in test leads.

Class I and Class II appliances and extension leads can be tested using the Kewtech SMARTPAT’s one-button automatic test sequences. Test sequences can be customised using the KEWPAT App, soon to be available for free on Android, which can also exercise remote control over the PAT tester. Results and a PASS/FAIL indication are shown on the LCD screen which flashes red to indicate failure and green to indicate a pass.

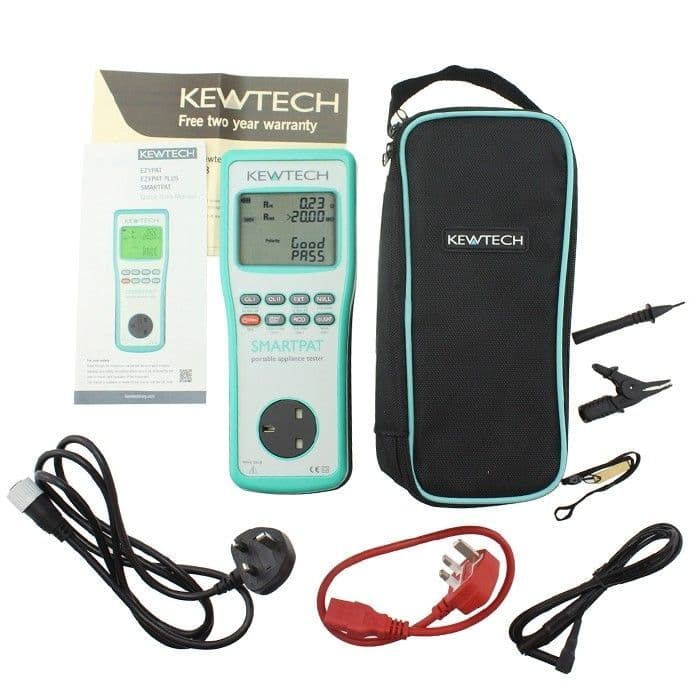

The Kewtech SMARTPAT comes supplied with an extension lead adaptor, earth bond test lead, crocodile clip, carry case and mains lead. The battery will power roughly 1400 test sequences and the PAT tester’s compact size makes it easy to store and transport.

Key Benefits
  • Easy to use
  • Converts into a full downloading PAT Tester with the KEWPAT APP
  • Automatic test sequences - standard or make your own
  • Large easy to read display
  • Battery operated - approx. 1400 tests
  • IT safe with 200mA earth test and 250V insulation option
  • PASS / FAIL – Green / Red screens
  • Run / leakage at supply voltage (110V or 230V)
  • Portable RCD tests 10mA & 30mA
Key Features
  • Performs Earth bond at 200mA (IT safe)
  • Converts into a full downloading PAT tester with the KEWPAT APP
  • Automatic test sequences - make your own with the KEWPAT APP
  • For fast data collection and results saving works in connection with the KEWPAT APP
  • PASS / FAIL – Green / Red screens
  • Appliance status pre-check
  • Quick check continuity
  • 5 second continuity
  • 250 V and 500 V insulation
  • Substitute leakage test
  • Selectable substitute leakage limits
  • Extension lead test
  • Test lead nulling
  • Back light
  • Extension lead adapter
  • Earth Continuity test lead with probe
    and crocodile clip
  • Carry bag with handle
  • Quick start guide
What's Included
  • Extension lead adapter (EZYLEAD)
  • Earth continuity test lead with probe and croc clip (EZYEARTH)
  • Mains Lead (EZYMAIN)
  • Carry bag with strap
Weights & Dimension
  • Boxed Weight: 1.84kg
  • Boxed Dimensions: 290(L)x140(W)x130(D)mm
Specifications
  • EAN:
    5060084081949
  • GTIN:
    5060084081949
  • MPN:
    SMARTPAT
  • Type:
    PAT Tester
  • Brand:
    Kewtech
  • Condition:
    New
  • Product Code:
    SMARTPAT
