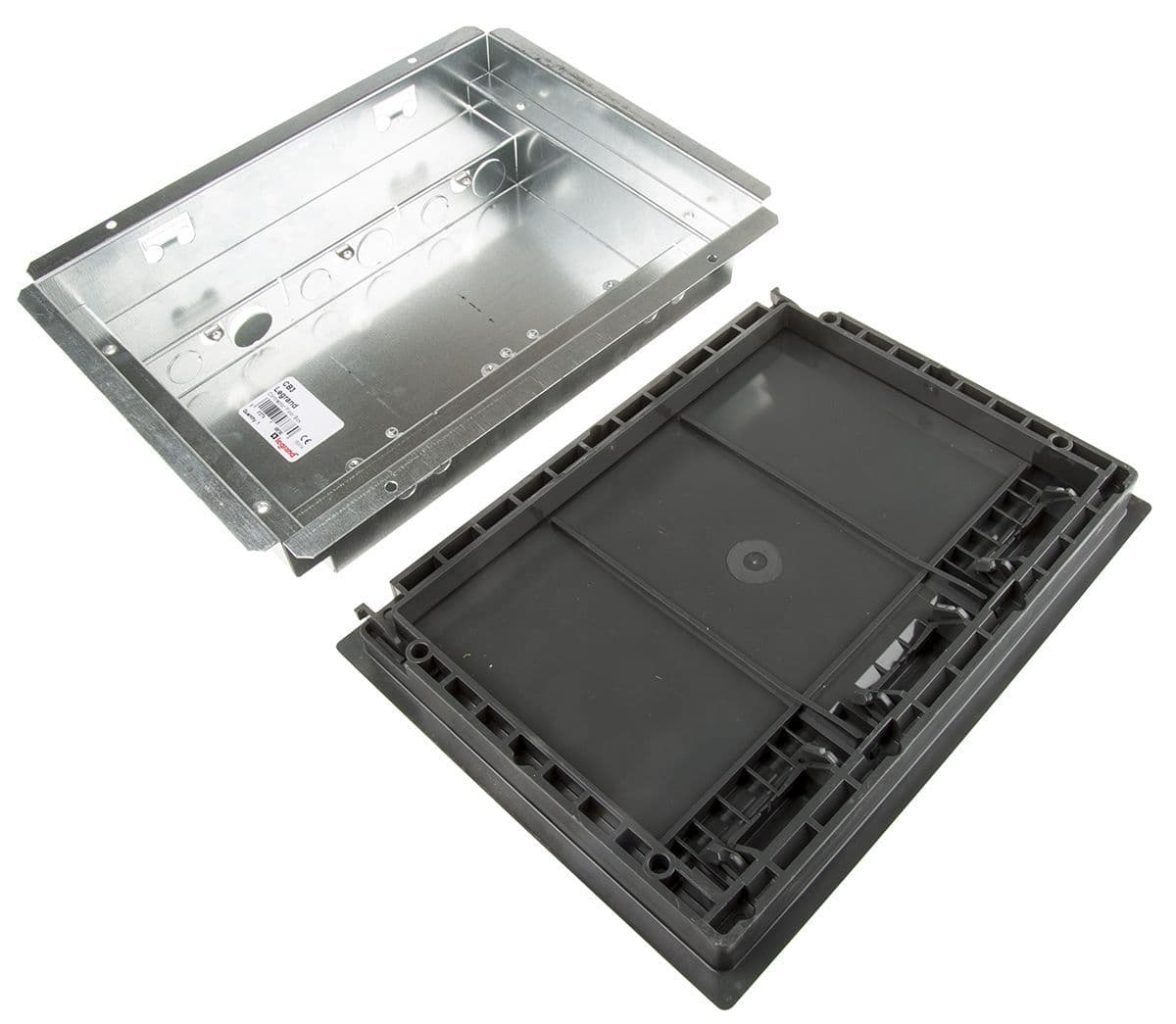

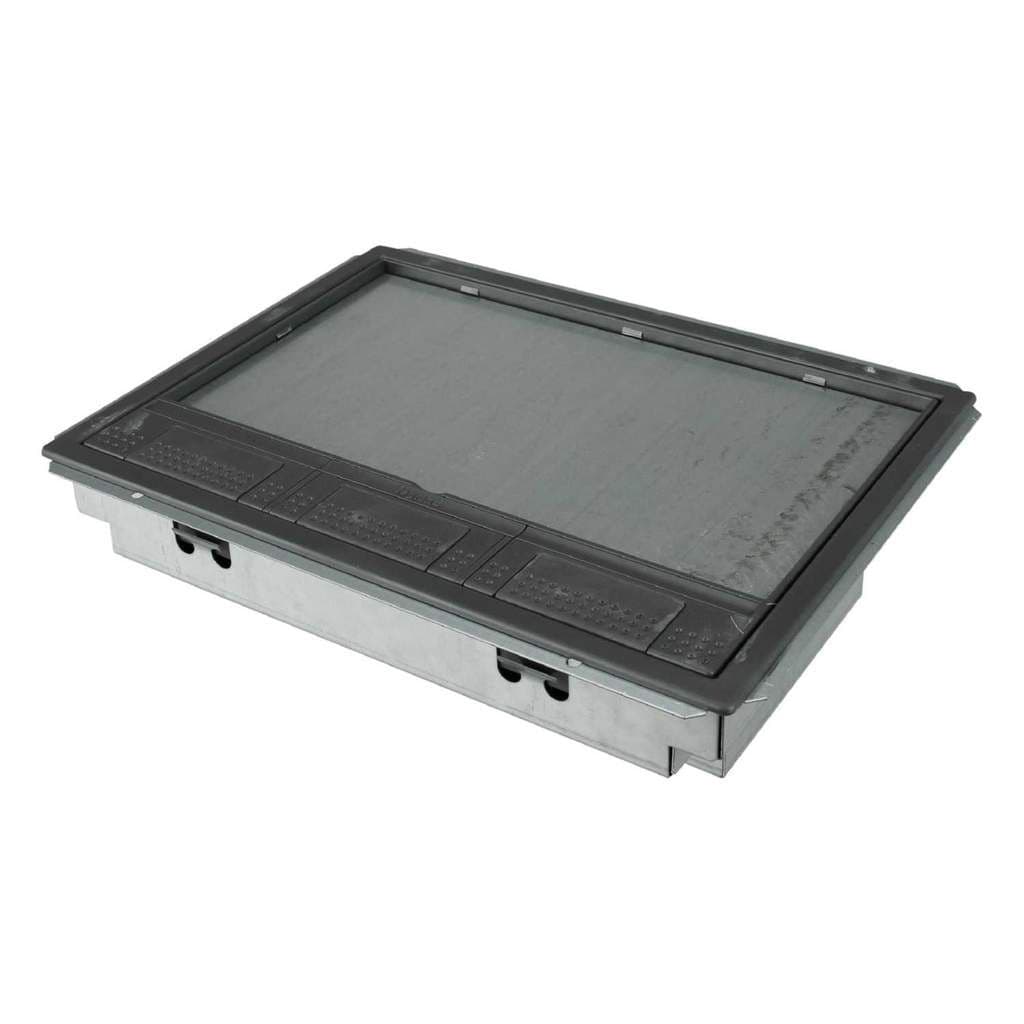

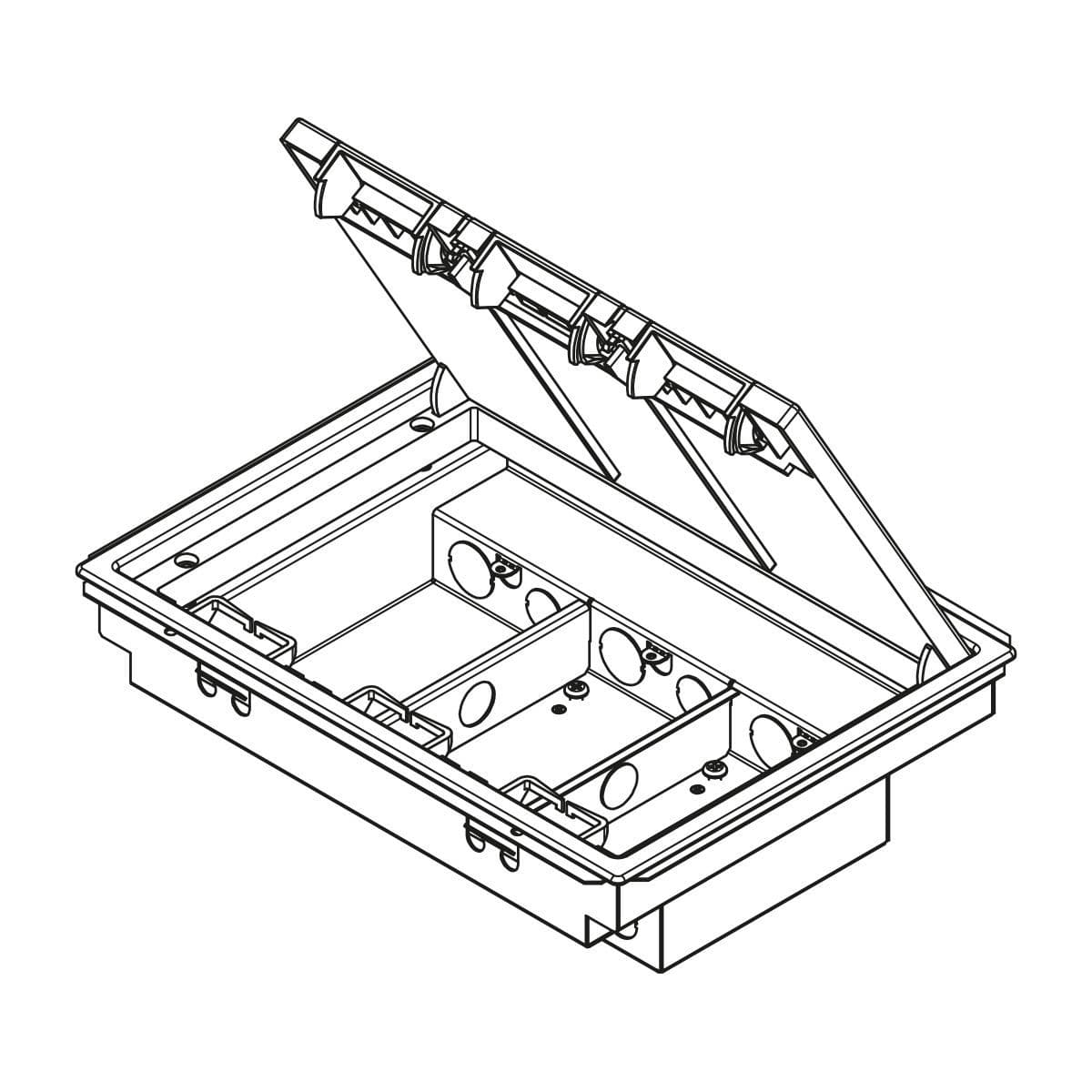

Legrand CB3 Compartment Contractor Floor Box 85mm with ABS Lid and Trim

The Legrand CB3 provides a versatile and organised solution for managing power and data outlets. It offers easy access and safe connection distribution, ideal for modern commercial and residential spaces.

Key Features

• Contractor floor box
• Supplied empty
• Ready to accept standard BS two gang wiring accessories
• Additional mounting plates not required
• Recommended hole cut-out size: 302-304 mm x 219-221 mm, 7 mm lid recess
• Standard depth: 85 mm
• 20/25 mm knockouts to each compartment
• Manufactured from pre-galvanised steel to BS EN 10142 and 3, and polycarbonate/ABS

Technical Information

• Cover model: Rectangular
• Number of device cups: 1
• Number of socket outlets with protective contact CEE 7/3 (type F): 0
• Number of socket outlets British Standard BS 1363: 0
• Housing material: Other
• Surface protection housing: Galvanised
• Degree of protection (IP) when in use (cable outlet open): IP20
• With opening carpeting: Yes
• Protective frame carpeting: Yes
• Colour: Grey
• Suitable for subfloor duct: No
• Suitable for hollow floor: Yes
• Suitable for wet cleaning: No
• Outer width: 246mm
• Outer length: 315mm
• Length built-in dimension: 303mm
• Width built-in dimension: 220mm
• Min. built-in depth: 85mm
