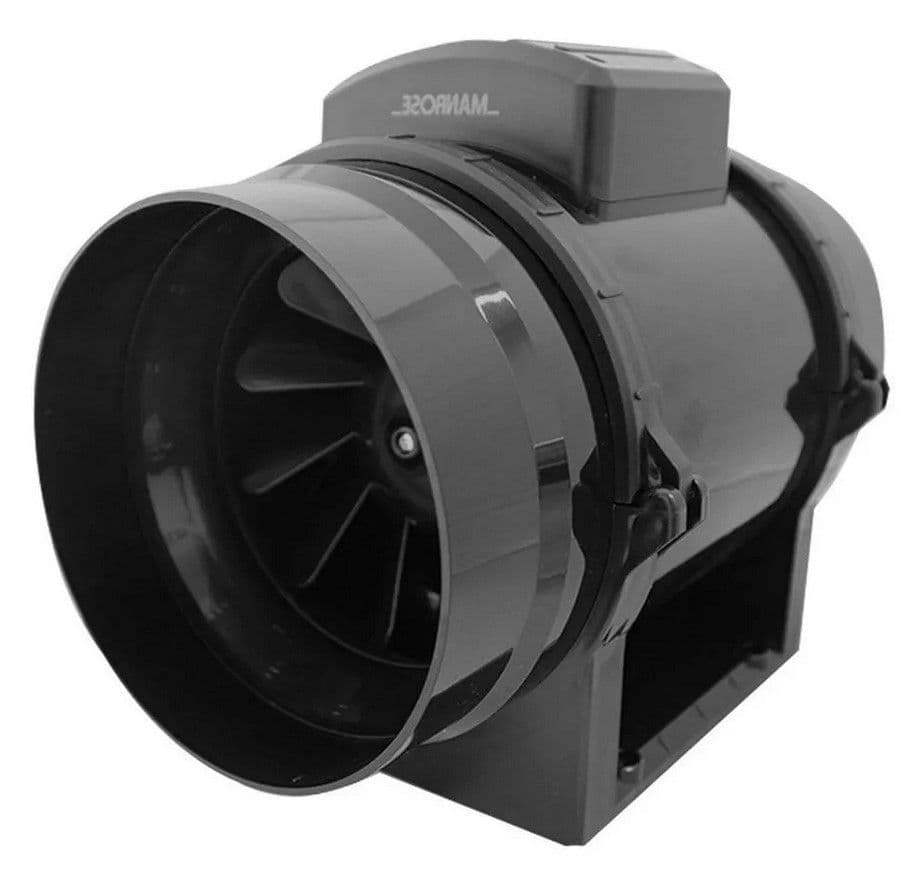

Manrose MF200S In-Line Mixed Flow 200mm Extractor Fan

The Manrose MF200S is a seriously powerful 8 inch inline extractor fan  designed for use in commercial environments or those domestic installations where particularly large air movement is required. The MF200S benefits from a compact assembly size, very low noise levels relative to its extraction rate and high quality ball bearings which give a guaranteed life of 30,000 hours. The MF200S may be operated at three different speeds, slectable by use of the Manrose METCON speed controller.

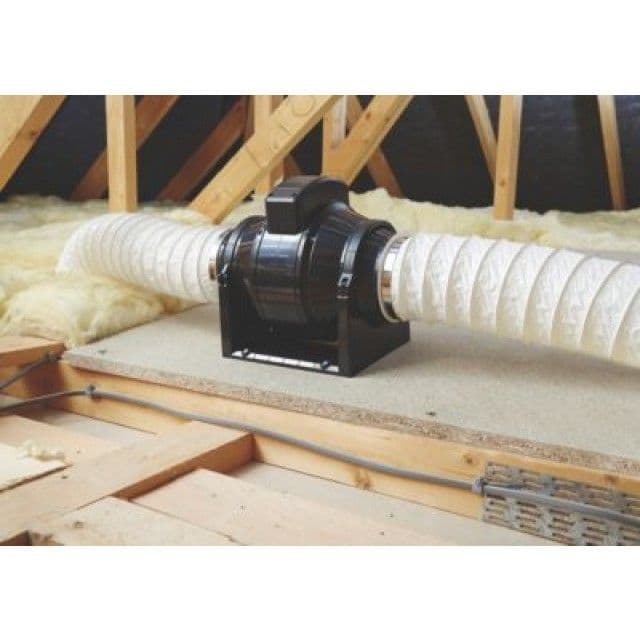

An inline fan is installed in the loft or ceiling void above the bathroom (or kitchen etc). Ducting is attached to each end of the fan with one  length going to an internal grille in the ceiling of the bathroom and the other going to a grille on the external wall, soffitt or roof.

Inline fans are particularly great for bathrooms as the internal grille may be sited directly above the shower or bath, thus extracting steam at source. With no electrics in the bathroom they are easy to install, saving both electrician and decorating costs and since they are housed in the loft or ceiling void the noise levels are also extremely low.

This fan can also be operated by humidistat by puchasing the 1361 Humidistat & Timer,

Features

• Air Extraction (High Setting) : 855m3/hr (max)
• Air Extraction (High Setting) L/s : 238 L/s (max)
• Noise : 48dB(A) (max)
• Watts : 120w
• Air Extraction (Low Setting) : 648m3/hr (max)
• Air Extraction (Low Setting) L/s : 180 L/s (max)
• Noise : 48dB(A)
• Watts : 100w

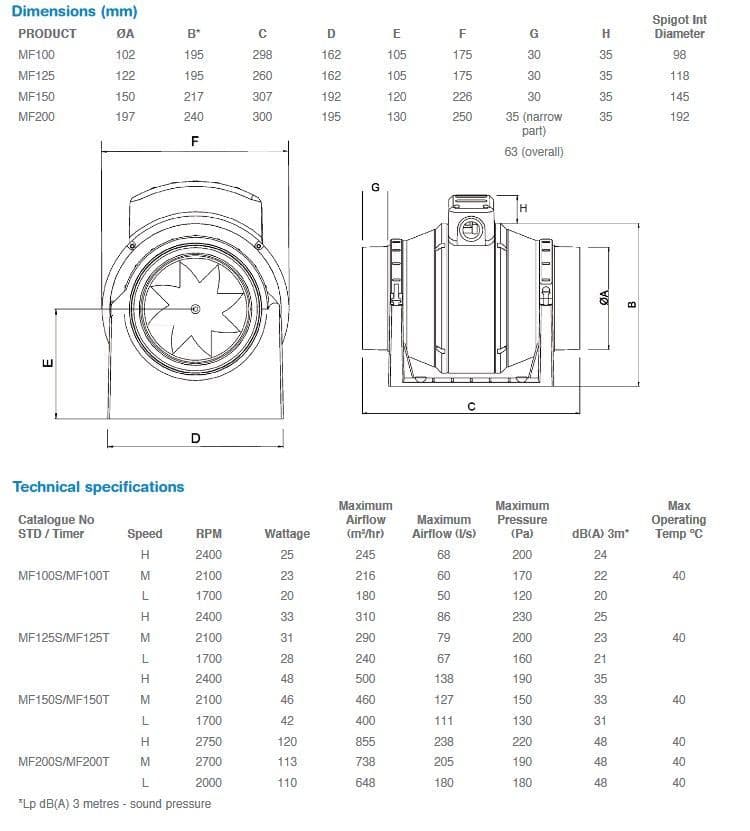

Dimensions

• Spigot diameter: 197mm
• Overall Length: 300mm
• Overall Width: 250mm
• Height (base to top of fan housing): 240mm
