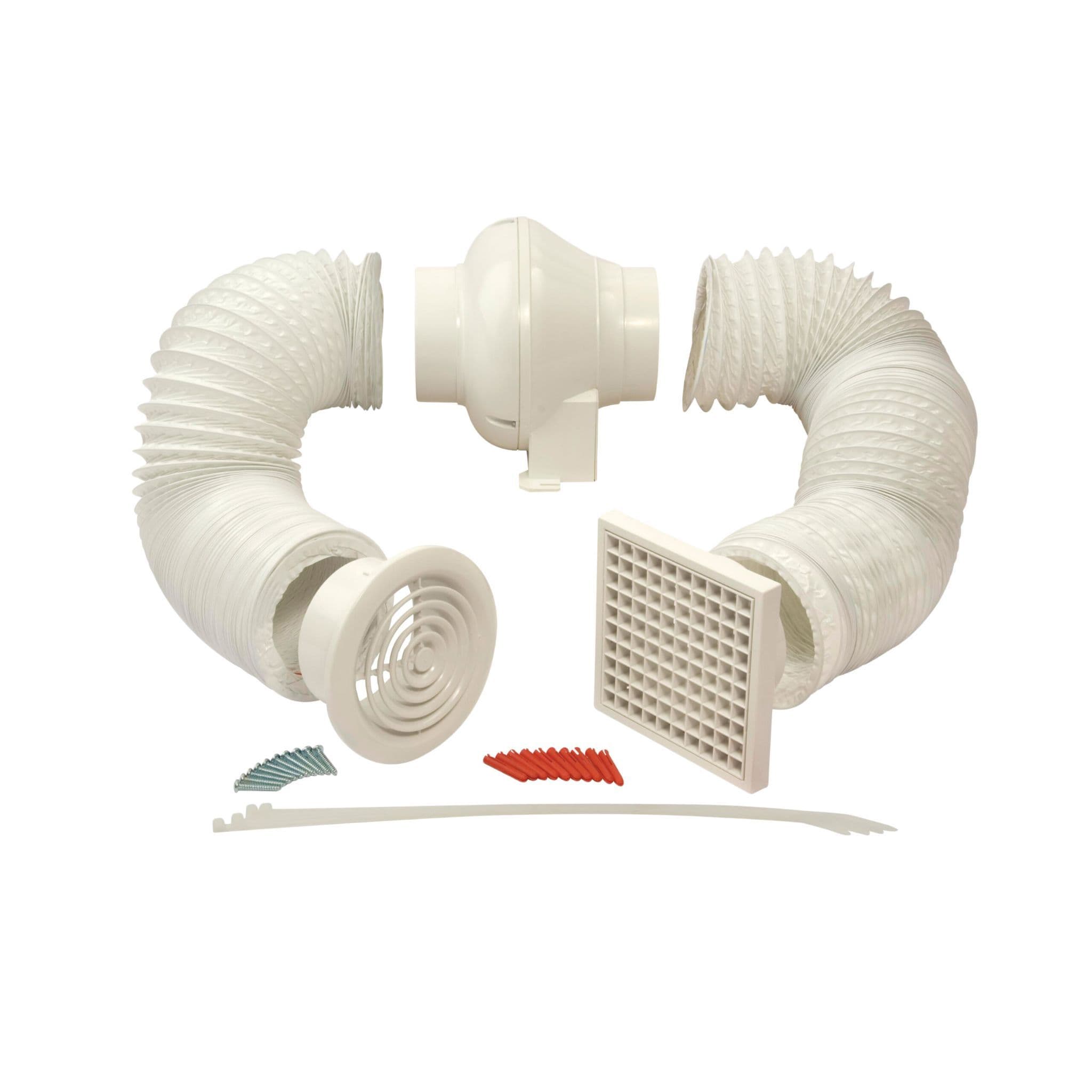

Manrose SCF200TN In line 100mm / 4" Timer Fan Kit with Ducting and Grille

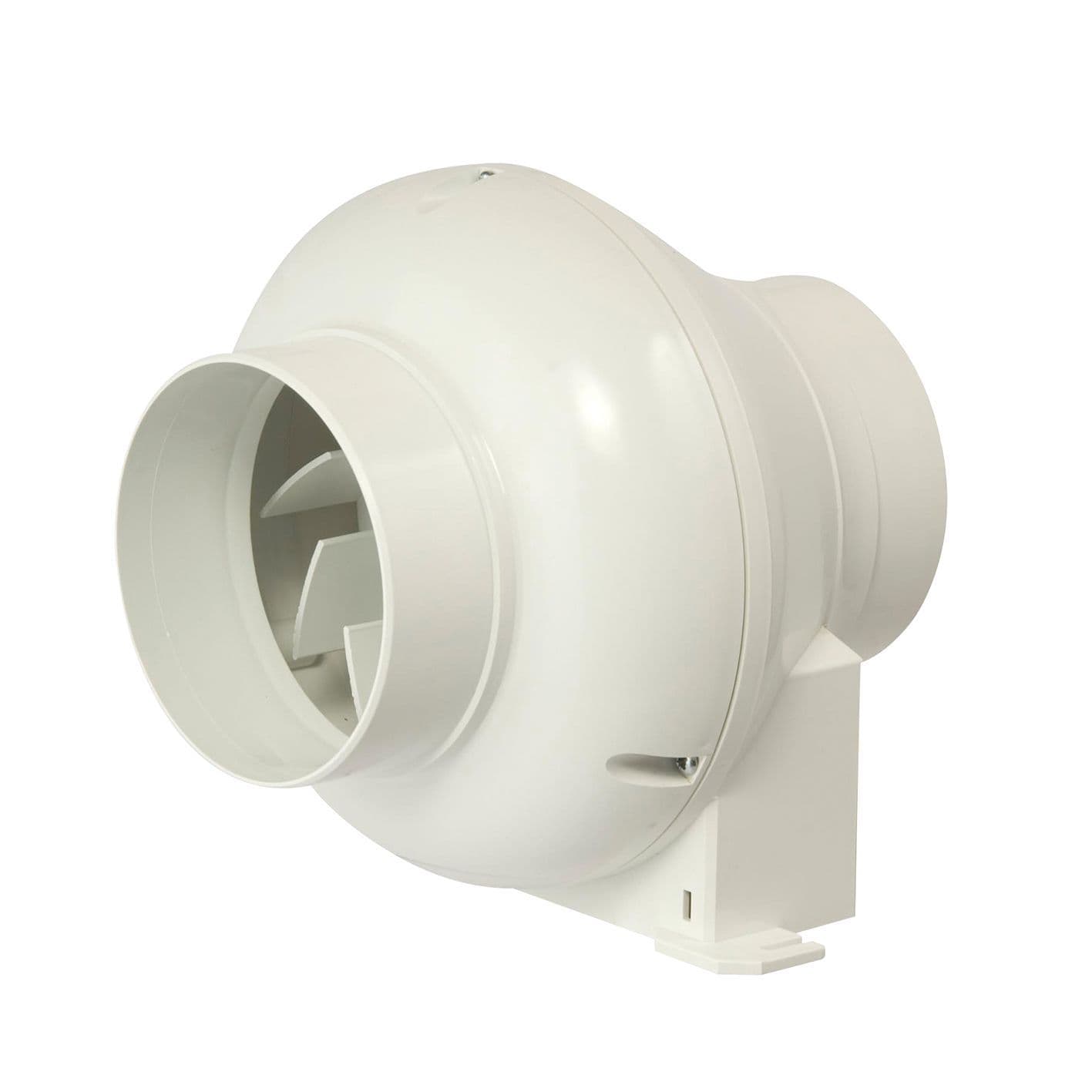

Designed for use with long duct runs, the Manrose SCF200T can be used in a wide range of domestic, commercial and industrial applications. Powerful, yet quiet and unobtrusive, the SCF200T has an extract rate of 110m3/hr 31 litres per second and will extract through ducting up to 10m long.

• Supplied with Bracket
• Manufactured using High Impact ABS Thermoplastic for stength and durability
• Timer Model. The timer inside the fan may be operated from light switch. The fan continues to run for preset time after switching off - adjustable 1-20 minutes.
• Fitted with backward curved centrifugal impellers for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles.
• Requires three wires: permanent phase, switched phase, neutral
• SCF200T is powered by a single phase 45W, induction motor with pre-oiled bearings for a long, maintenance-free life.
• A spring operated non return flap built in to the discharge spigot to prevent Back Draughts

Specification

• Air Extraction : 110m3/hr
• Air Extraction L/s : 31 L/s
• Noise : 45dB(A)
• Watts : 17W
