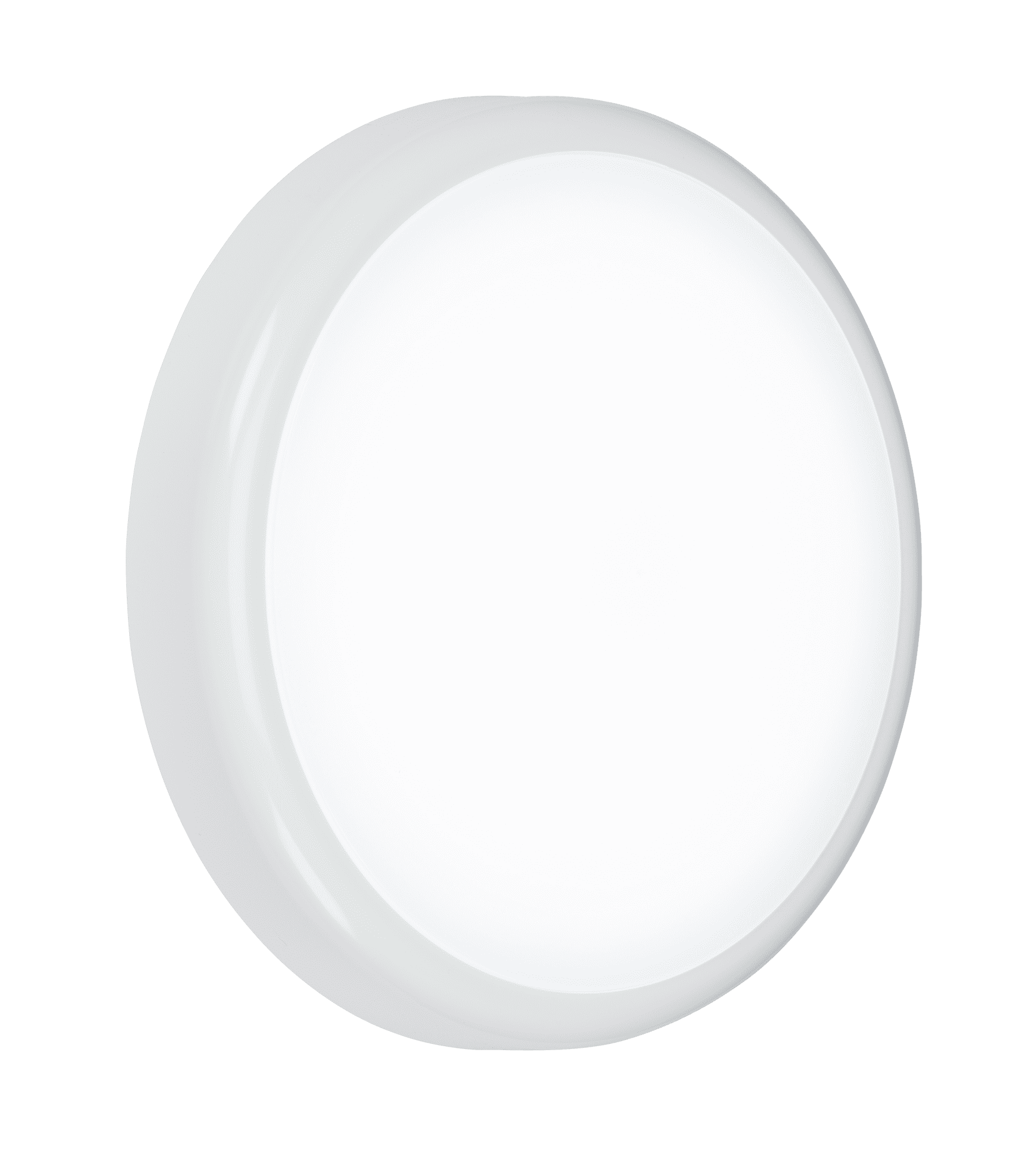

ML Accessories BT14ACTEMS 230V IP65 14W CCT Adjustable LED Bulkhead Emergency and Sensor

Product Description

ML Accessories BT14ACTEMS 230V IP65 14W CCT Adjustable LED Bulkhead with Emergency and Sensor

Long life, high lumen wall and ceiling mountable LED luminaire, for internal and external use. Options available that include standard, microwave sensor, corridor function and emergency. A range of easy fit accessories which includes bezel and eyelid options which makes this luminaire ideal for most domestic and commercial applications.

Key Features

  • CCT adjustable
  • 3000K / 4000K / 5700K
  • 3 hour Maintained Emergency
  • Hinged LED Gear Tray
  • Push fit fast fix terminal block
  • Low Profile
  • Polycarbonate high output diffuser
  • Adjustable microwave sensor; detection, lux and hold time
  • 3000K, 1130lm / 4000K, 1260lm / 5700K, 1210lm

Specifications

EAN
5055832989202
GTIN
5055832989202
MPN
BT14CTEMS
Diameter
315mm
Projection
74mm
Construction
Polycarbonate
FINISH
White
Class
II
IP Rating
IP65
Primary Voltage
230V 50Hz
Mounting Method
Surface
Diffuser
Opal
Driver
Included
Emergency
Maintained / Non-maintained / Switched
Ambient Operating Temperature
-5~50
Lamp Technology
SMD LED
LED Chip Pattern
SMD 3528
No. of Lamps/LED's
144
Lamp Included
Yes
Dimmable
No
Lamp Life Expectancy
30,000 Hours
Beam Angle
Degrees
Colour Temperature
3000/4000/5700K
Light Colour
CCT
Lumens
1085 / 1285 / 1130
Lumens (Emg Mode)
122 / 137 / 138
Wattage
14W
Circuit Wattage
13
Efficacy
137.3
Actual CRI
85.54
SDCM Tolerance
5.45
Operating Current
0.065
PF (Power Factor)
0.933
SVM
0.001
Driver Type
Constant Current
Max. Output
12
Output Voltage
37
Output Current
330
Power Factor
>0.9
Isolation
SELV
Ambient Temperature (TA)
-5 ~ 50
Case Temperature (Tc)
75
Sensor Type
Microwave
Optimum Detection Range
Maximum 12
Sensor Duration
5 seconds - 30 minutes
Sensor Lux Settings
2 lux - 50 lux / Disable
Warranty
3 Year
Brand
ML Accessories
Condition
New
Product Code
BT14ACTEMS
Weight
1.38kg
