Home / Suppliers / ML Accessories
product review overlay image

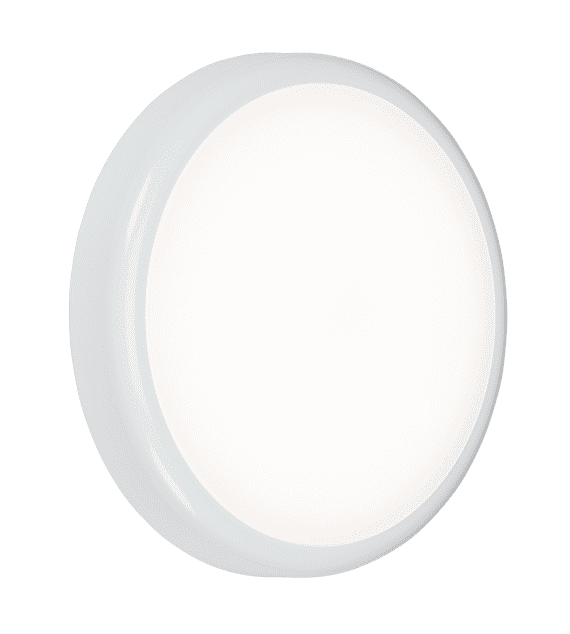

ML Accessories BT14CTA 230V IP65 14W CCT LED Bulkhead with Corridor Function

Product Description

230V IP65 14W CCT LED Bulkhead with Corridor Function Sensor.

Long life, high lumen wall and ceiling mountable LED luminaire, for internal and external use. Options available include standard, microwave sensor and emergency. A range of easy fit accessories which includes bezel and eyelid options which makes this luminaire ideal for office,multiple occupancy and commercial applications optimising energyefficiency automation at all times.

  • CCT adjustable - 3000K / 4000K / 5700K
  • Corridor function
  • Hinged LED Gear Tray
  • Push fit fast fix terminal block
  • Low Profile
  • Polycarbonate high output diffuser

3000K, 1085lm / 4000K, 1285lm / 5700K, 1130lm

Specifications

Ambient Temperature (TA)
-5 ~ 50
Ambient Operating Temperature
-5~50
SVM
0.001
Operating Current
0.065
PF (Power Factor)
0.933
Lumens
1085 / 1285 / 1130
Max. Output
12
Circuit Wattage
13
Efficacy
137.3
No. of Lamps/LED's
144
Wattage
14W
Primary Voltage
230V 50Hz
Sensor Lux Settings
30 seconds - permanent
Lamp Life Expectancy
30,000 Hours
Colour Temperature
3000/4000/5700K
Diameter
315mm
Output Current
330
Output Voltage
37
Smart Product
5 lux - 50 lux / Disable
Sensor Duration
5 seconds - 10 minutes
SDCM Tolerance
5.45
EAN
5055832994244
GTIN
5055832994244
Projection
74mm
Case Temperature (Tc)
75
Actual CRI
85.54
Power Factor
>0.9
MPN
BT14CTA
Light Colour
CCT
Driver Type
Constant Current
Beam Angle
Degrees
Class
II
Driver
Included
IP Rating
IP65
Sensor Type
Microwave - Corridor Function
Dimmable
No
Diffuser
Opal
Construction
Polycarbonate
Isolation
SELV
LED Chip Pattern
SMD 3528
Lamp Technology
SMD LED
Mounting Method
Surface
FINISH
White
Lamp Included
Yes
Brand
ML Accessories
Condition
New
Product Code
BT14CTA
Weight
1kg

Customer reviews

No reviews left yet
Write A Review

230V IP65 14W CCT LED Bulkhead with Corridor Function Sensor.

Long life, high lumen wall and ceiling mountable LED luminaire, for internal and external use. Options available include standard, microwave sensor and emergency. A range of easy fit accessories which includes bezel and eyelid options which makes this luminaire ideal for office,multiple occupancy and commercial applications optimising energyefficiency automation at all times.

  • CCT adjustable - 3000K / 4000K / 5700K
  • Corridor function
  • Hinged LED Gear Tray
  • Push fit fast fix terminal block
  • Low Profile
  • Polycarbonate high output diffuser

3000K, 1085lm / 4000K, 1285lm / 5700K, 1130lm
