Product Description

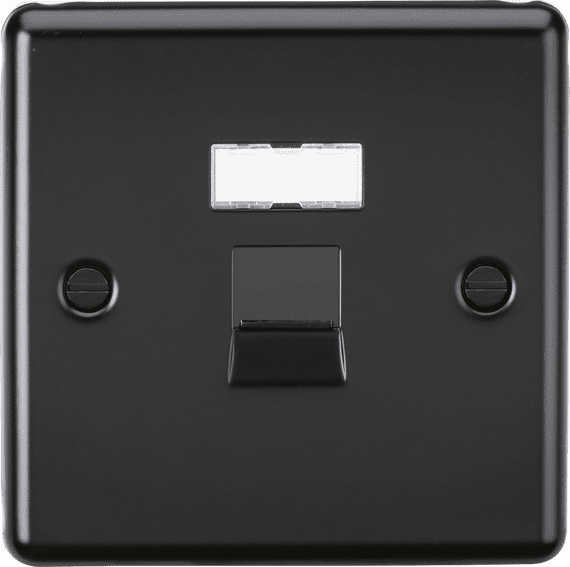

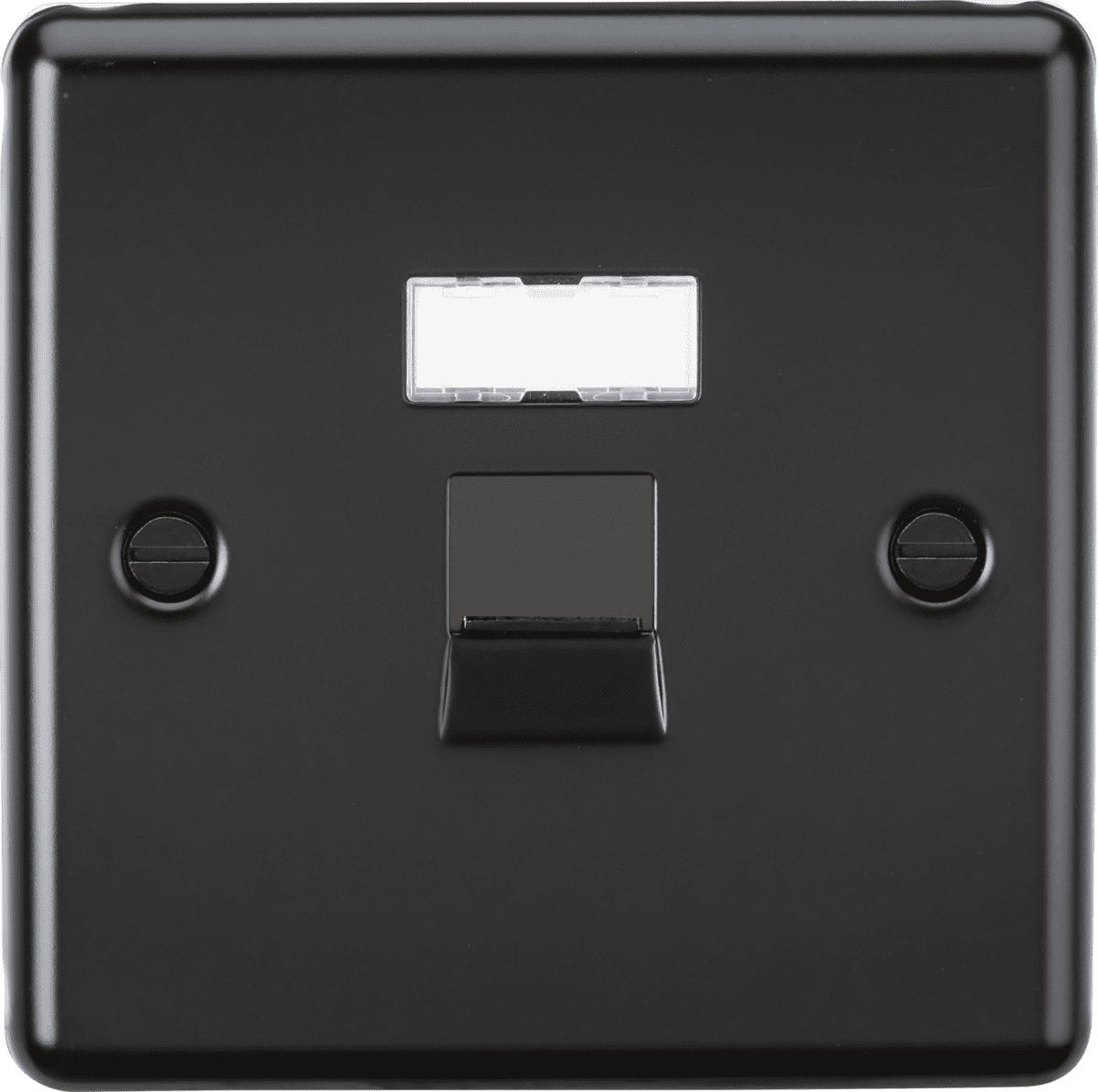

ML Accessories CLC6MB UTP CAT6a RJ45 Network Outlet - Matt Black
ML Accessories Ltd, trading under the brand name Knightsbridge, is a leading UK-based manufacturer and distributor of lighting and wiring accessories. Established in 1998, the company has built a strong reputation within the electrical wholesale market for delivering high-quality, innovative, and stylish products at competitive prices.

This ML Accessories Range is a Contemporary, screwed rounded raised edge design, projecting 7.5mm from wall. Perfect for modern homes. Constructed from high-quality steel with a discreet built-in gasket and matching metal shutter detail.

Key Features

  • Single shuttered CAT6A Unshielded RJ45 Outlet
  • Conforming to ANSI/TIA/EIA 568B. 2-10
  • Insulation Resistance: less than 500 milli-ohm at 100V DC
  • Withstand Voltage: 1000V DC, 700V AC RMS 60Hz 1 min
  • Operating Temperature: -10°C to 60°C
  • 16-20 AWG wire gauges

Benefits

  • Increased bandwidth - Capable of supporting data transfer rates of up to 10Gbps over 100m at a maximum bandwidth of 500Mhz (CAT6 can only support 30-50m or 1Gbps at 100m at max. 250Mhz)
  • Backwards compatible with both CAT6 and CAT5e – however its important to note that speed will be affected
  • Reduced crosstalk
  • Beyond the standard uses it also provides enhanced PoE (Power over Ethernet) capabilities that make it ideal for smart home functions such as smart security cameras in locations where standard power outlets aren’t available.
  • For best results must be used with certified CAT6A cabling.

Specifications

EAN
5061061272602
GTIN
5061061272602
MPN
CLC6MB
FINISH
Brushed Chrome
Height
85.75mm
Width
85.75mm
Depth
32.7mm
Projection
7.5mm
Minimum Mounting Box Depth
35mm
Construction
304 Stainless steel
IP Rating
IP20
Earth Terminal
Yes
Terminal Type
IDC
Function
T568A/T568B Wiring
Warranty
2 Years
Brand
ML Accessories
Condition
New
Product Code
CLC6MB
Weight
0.085kg

Customer Reviews

ML Accessories CLC6MB UTP CAT6a RJ45 Network Outlet - Matt Black

Product Code CLC6MB
