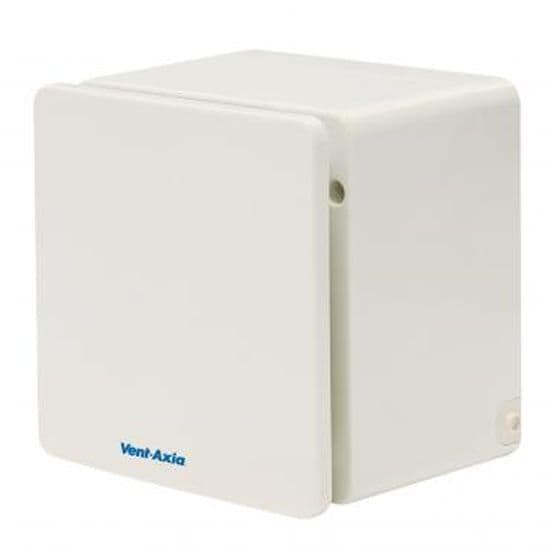

Vent Axia 409160 Solo Pro T Centrifugal Fan With Timer 100mm

The new Solo Pro is a new and improved version of our trusted Solo model. With improved aesthetics, sound and installation it has been specifically designed for effective ducted ventilation of internal bathrooms, toilets and other small rooms. Finished in White, the new Solo Pro range can be used with 100mm diameter smooth bore duct in straight runs equal to 50m, yet still meets the minimum 15l/s required by the current Building Regulations Document F for ventilation of bathrooms. Solo Pro can also be used with flat ducting for shorter concealed runs.

Control by light/remote switch with overrun timer variable from 5 to 30 minutes and back draught shutter included.

Models are available for surface or recessed mounting directly into standard 100mm diameter ducting. Suitable for panel, wall and ceiling installations and windows up to 25mm thick. For high rise or coastal applications, install through the wall with a Vent Cowl (Stock Ref 561403).

Key Features

• 100mm high performance centrifugal extract fan for internal bathrooms, toilets and other small rooms
• Extract performance 22l/s
• Single speed and overrun timer models
• Suitable for wall, ceiling, panel and window mounting
• Suitable for use with flat ducting
• Transformer complies with BS EN 60742
• IPX4 rated

Technical Information

• Airflow: 80m³/h
• Applicable Area: Bathroom, Laundry Room, Toilet
• Backdraft Shutter: Yes
• Bathroom Zones: 1, 2
• Extraction Rate Litres Second: 22L/s
• Fan Size Diameter: 4in
• Finish Or Colour: White
• IP Rating: IPX4
• Minimum Voltage: 220V
• Mounting: Ceiling
• MPN: 409160
• Noise Level Maximum: 30dB
• Number Of Speeds: 3
• Power Consumption: 18W
• Timer: Yes
• Voltage: 240V

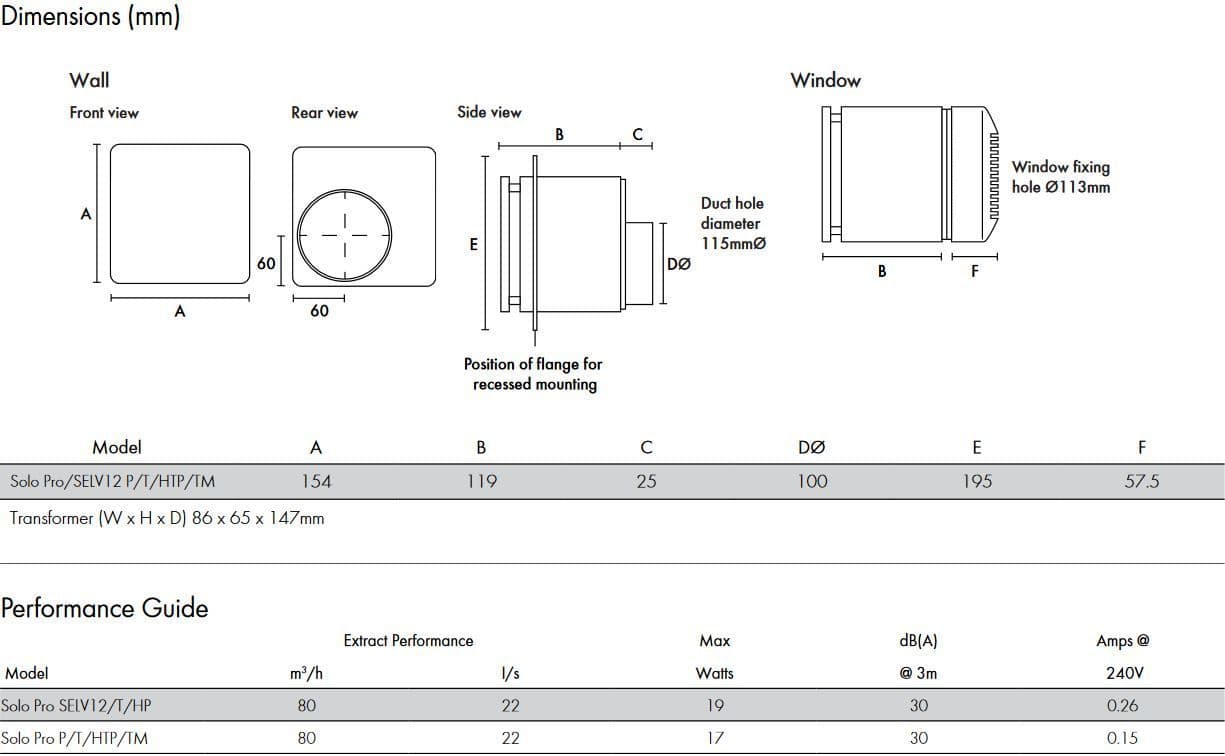

• Height: 154mm
• Width: 154mm
