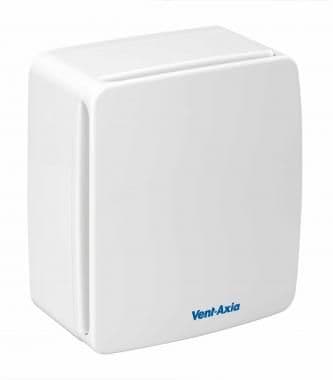

Vent-Axia 431613B CENTRIF DUO PLUS P Extractor Fan with Override Pull Cord

Two speed kitchen extract fan with pullcord. Choice of two speeds for boost, set at installation.

Centrif Duo Plus is designed to provide extraction levels that comply with Building Regulations Approved Document, with special humidity sensing variants for local authority use.

The Centrif Duo Plus is for kitchens and utility rooms and large bathrooms. Surface mounting directly into standard 100mm diameter ducting, through the wall or ceiling installation.

Fast Installation

The Centrif Duo Plus has a 100mm circular spigot. The Flush mounting kit enables the spigot to be converted to a side outlet.

The spigot also encloses a built-in, spring operated backdraught shutter. The Centrif Duo Plus Range can be wall mounted using a telescopic wall fitting kit available as an accessory (requires a 115mm diameter hole). For ceiling applications the range is ducted either through a soffit outlet or roof cowl assembly. There is convenient access for wiring which can be surface or recessed.

Improved Humidistat Control

Humidistat is selectable for either kitchen or utility speed separate to any other control to reduce nuisance noise. Boost operation by pullcord or switch live.

Key Features

• Meets current Building Regulations Approved Document F
• Optional filter available
• Easy installation
• Fan can be wall or ceiling mounted
• Suitable for both kitchen and utility rooms
• Constant trickle boost speed available on DP & HTP models
• Pullcord Override
• IPX4 Rated
