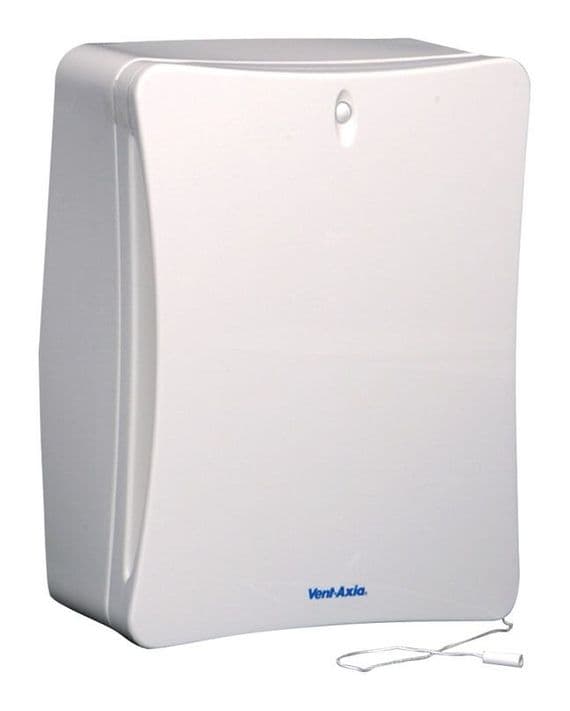

Vent-Axia SOLO PLUS P 427477 Centrifugal Extract Fan with Pull Cord

The Vent Axia Solo Plus Pullcord is Flush or surface mountable. Control by pullcord single speed; 1 of the 3 speeds selectable at installation.

The Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, toilets and other small rooms. Finished in white, the Solo Plus can be flush or surface mounted, with a 100mm circular spigot for rear entry or connecting to a vertical ducting system. The spigot can also be adjusted for side ways exhaust enabling recessed ceiling installations within limited ceiling voids. The powerful centrifugal impeller allows for installations with longer duct runs using 100mm ducting, whilst
still achieving 15 l/s as required by Document F of the current Building Regulations.

Continuous running products, such as the Solo Plus installed in all wet areas of a dwelling are classed as a wholehouse ventilation system and therefore, only needs to move the amount of air as laid down in table 1.1b of Document F.

The Solo Plus has a choice of two boost/override motor speeds set at installation, medium (17l/s) or high (22l/s), with an optional constant trickle speed (9l/s), also selectable at installation except in the P model. Depending on the model, the fan will switch from trickle (if selected) to boost (medium or high) via the pullcord/ light switch/humidity sensor/PIR.

All models can be wall, panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axia’s flat ducting. Enclosure of the electrical components is manufactured from flame retardant grade material.

Key Features

• Up to 70% energy saving
• Filterless as standard - innovative impeller design means no need for a filter
• 5 Year Lo-Carbon motor guarantee
• Meets current Building Regulations Approved Documents F & L
• IPX4 rated
• Flush or surface mountable with adjustable rear or side exit spigot
• SELV models suitable for installation over or within reach of a shower or bath
• Extremely low sound levels
• Suitable for wall, ceiling and panel mounting
• Pullcord As Standard

The Solo Plus has a choice of two boost/override motor speeds set at installation, medium (17 l/s) or high (25 l/s), with an optional constant trickle speed (10 l/s), also selectable at installation except in the P model. Depending on the model, the fan will switch from trickle (if selected) to boost (medium or high) via the pullcord/light switch/humidity sensor/PIR. All models can be wall; panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axia’s flat ducting. Enclosure of the electrical components is manufactured from flame retardant grade material. Supply voltage 220-240V/1/50Hz.

Please note that ALL Timer fans require not only a switched live supply to activate the timer, but also a permanent live and neutral supply to keep the fan running once it has been switched "off"

i.e. Three conductors plus earth. Without all of the above, the fan will not function.
