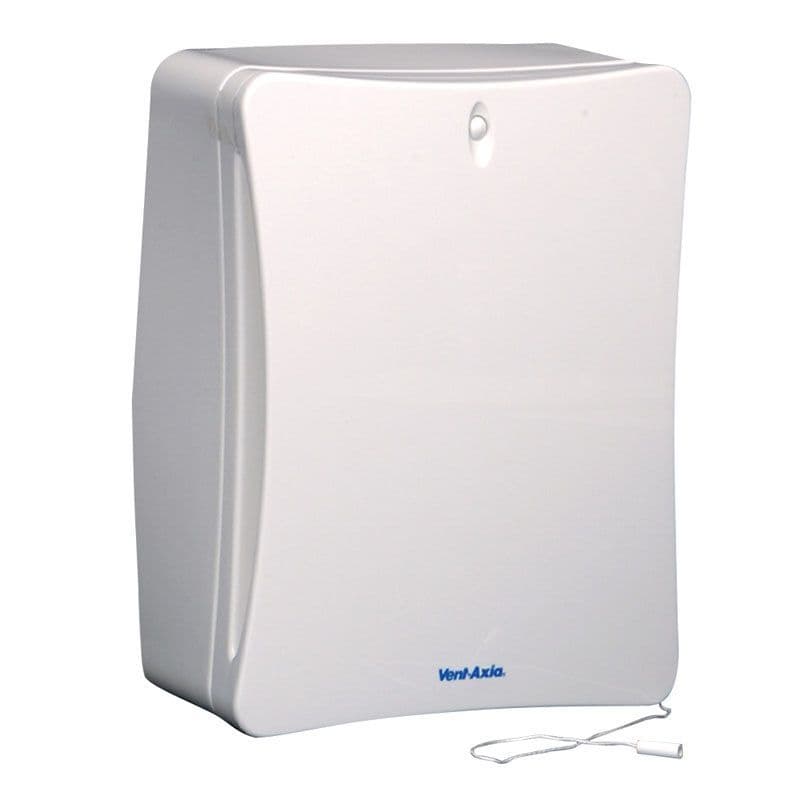

Vent-Axia SOLO PLUS TM PIR 427480 Centrifugal Extract Fan with Timer/PIR

£180.12
£216.14 (inc. VAT)
Information

Model : SOLO PLUS TM PIR

The Vent-Axia SOLO PLUS TM PIR Centrifugal Extract Fan has an adjustable overrun timer, PIR activation and is flush or surface mountable. It has 2 speeds as well as an optional continuous trickle mode.

The Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, toilets and other small rooms. Finished in white, the Solo Plus can be flush or surface mounted, with a position 100mm circular spigot for rear entry or connecting to a vertical ducting system. The powerful centrifugal impeller allows installations using 100mm ducting in straight runs up to 50m, whilst still achieving 15 l/s as required by Document F of the current Building Regulations.

Features:

  • Filterless as standard - innovative impeller design means no need for a filter
  • Meets the Building Regulation (Document F&L) requirements for domestic bathrooms and toilets.
  • IPX4 rated.
  • Flush or surface mountable.
  • Adjustable rear or side exit spigot.
  • Extremely low sound levels.

Extract Performance m Degree/h (l/s) - FIDWattsSound dB(A) @ 3m
ModelMax BoostMin BoostTrickleMax BoostMin BoostTrickleMax BoostTrickle
Solo Plus P80 (22)61 (17)32 (9)17.110.96.334.511.5
Solo Plus T80 (22)61 (17)32 (9)17.110.96.334.511.5
Solo Plus HT80 (22)61 (17)32 (9)17.110.96.334.511.5
Solo Plus TM80 (22)61 (17)32 (9)17.110.96.334.511.5
Tested at 240VAC @ 50Hz

Dimensions:

ABCDEFGHIJ
26322410655986265349872





The Solo Plus has a choice of two boost/override motor speeds set at installation, medium (17 l/s) or high (25 l/s), with an optional constant trickle speed (10 l/s), also selectable at installation except in the P model. Depending on the model, the fan will switch from trickle (if selected) to boost (medium or high) via the pullcord/light switch/humidity sensor/PIR. All models can be wall; panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axias flat ducting. Enclosure of the electrical components is manufactured from flame retardant grade material. Supply voltage 220-240V/1/50Hz.


Vent-Axia model no. 427480

You might also like...

DuctingGrillesOther
Accessories

Please note that ALL Timer fans require not only a switched live supply to activate the timer, but also a permanent live and neutral supply to keep the fan running once it has been switched "off"

i.e. Three conductors plus earth. Without all of the above, the fan will not function.

Specifications
  • Type:
    Timer
  • TYPE (2):
    Centrifugal
  • TYPE (2):
    Centrifugal
  • MPN:
    427480
  • EAN:
    5015135274801
  • GTIN:
    5015135274801
  • Brand:
    Vent Axia
  • Condition:
    New
  • Product Code:
    427480
  • Weight:
    2.7kg
