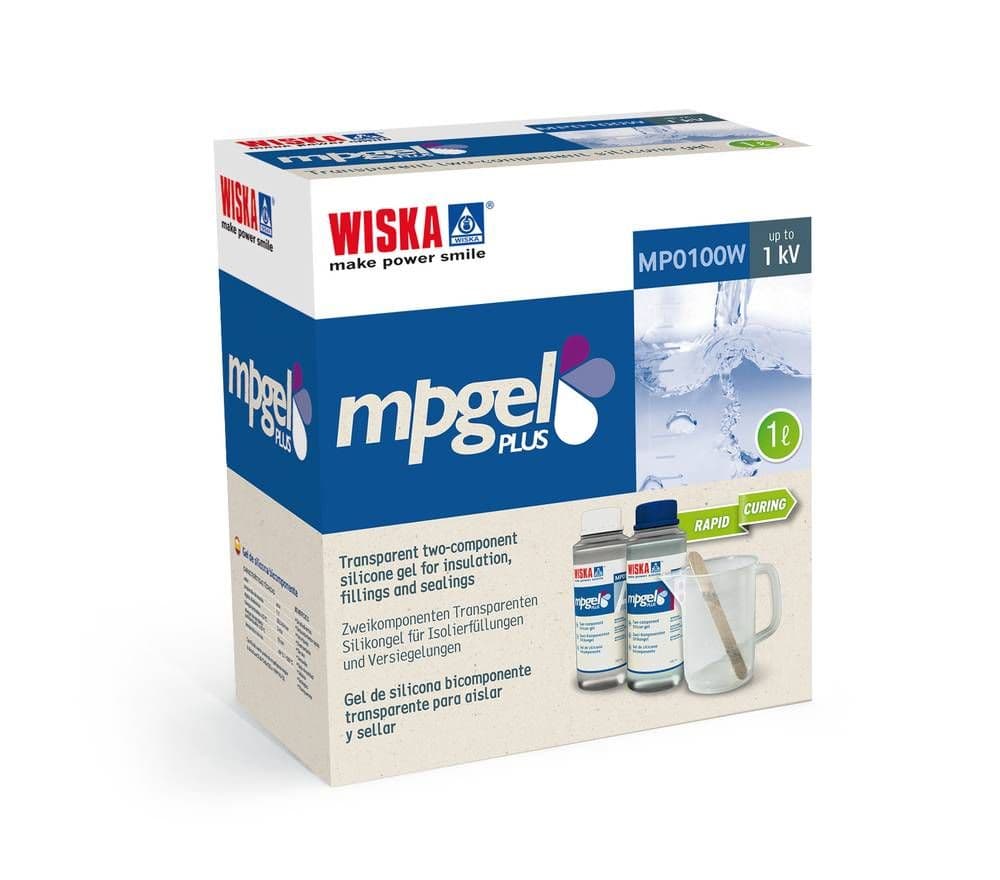

Wiska MP0100W MPGEL Plus Transparent Insulating Gel Junction Box Filler
Wiska products are used all over the world and are characterized by the possibility of being used in different industries, offering high quality standards. Every day and in all circumstances, WISKA products demonstrate their efficiency, even in the most adverse conditions.
To provide the highest quality, WISKA independently controls every process in the entire supply chain. Research, development, selection and purchase of materials, construction and production, laboratory testing and testing methods, sales, marketing, logistics and after-sales service.
The MPGel Plus IP68 junction box filler, kits includes 2 x 500 ml bottles and measuring jug. Suitable to fill COMBI 1210/5 and 1610 with additional MPSG420.
This is the Wiska MP0100W MPGel Plus transparent two-component silicone gel for insulation, fillings, and sealings. Ready to use, re-enterable, easy pouring, separate containers (no waste), excellent electrical insulation, good mechanical strenght, non toxic, no expiry date.
Note COMBI 1610 will require 2 x MP0100W.
Wiska MP0100W - Applications and Advantages
- Junction box filler
- Electrical insulation on cables and accessories up to 0,6/1 Kv
- Electronic boards and component insulation
- Very fast cross-linking Re-enterable
- Non toxic, Easily pourable
- No waste thanks to separate containers, the graduated jug and perforation pouring system
- Excellent electrical insulation
- Protection from the elements (rain, humidity) from dust and the intrusion of animals, insects, leaves
- Good mechanical strength
- No expiry date/reuseable after opening
Wiska MPGel Plus Silicone Gel - Technical Specs
- High dielectric strength.
- High moisture protection.
- Dielectric strength: 25.5 kV/mm
- Working time at 23deg C: 5min
- Polimerization time at 23deg C: 12min
- Operating temperature: -60deg to +200deg C
- Mixing ratio: 1:1
- Up to 1 kV
- Volume: 2 x 500 ml
- Model: Wiska MP0100W
- Two components Gel. CE Mark. RoHS
